Materialization for metric views

Experimental

This feature is Experimental.

Materialization for metric views accelerates queries by using materialized views to pre-compute aggregations. Lakeflow Spark Declarative Pipelines orchestrates user-defined materialized views for a given metric view, and at query time, the query optimizer intelligently routes queries to the best materialized view using automatic aggregate-aware query matching (query rewriting). This approach provides automatic incremental updates without requiring you to determine which aggregation table to query or manage separate production pipelines.

Overview

Materialization for metric views involves two phases: defining the materialization and running queries against it.

Definition phase

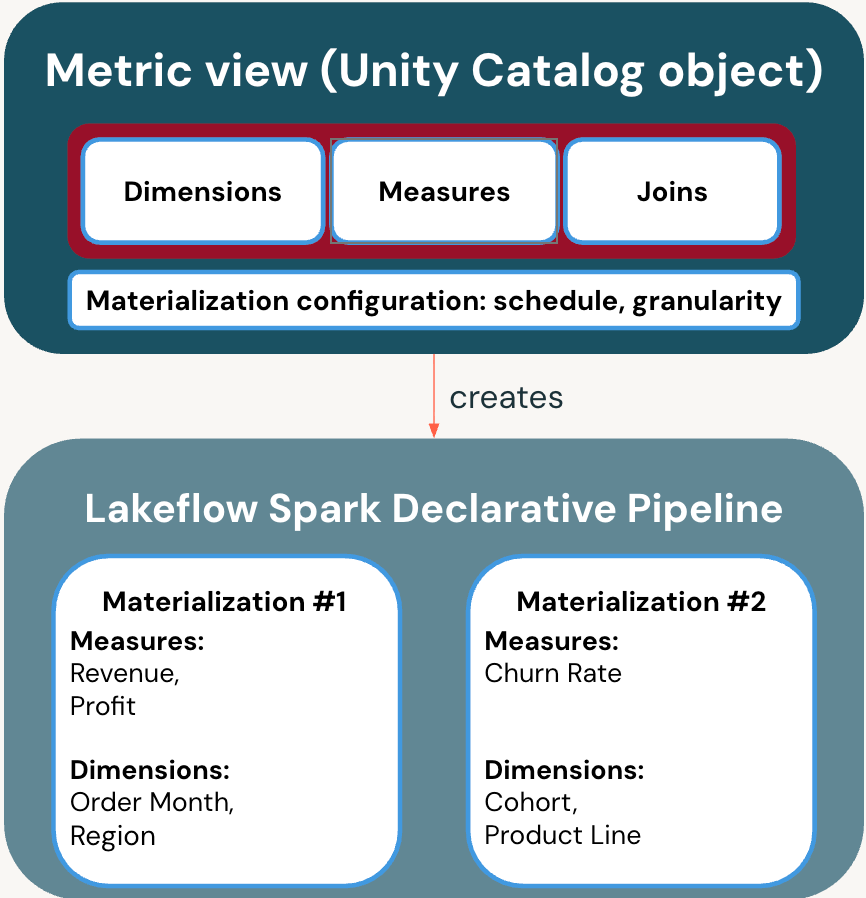

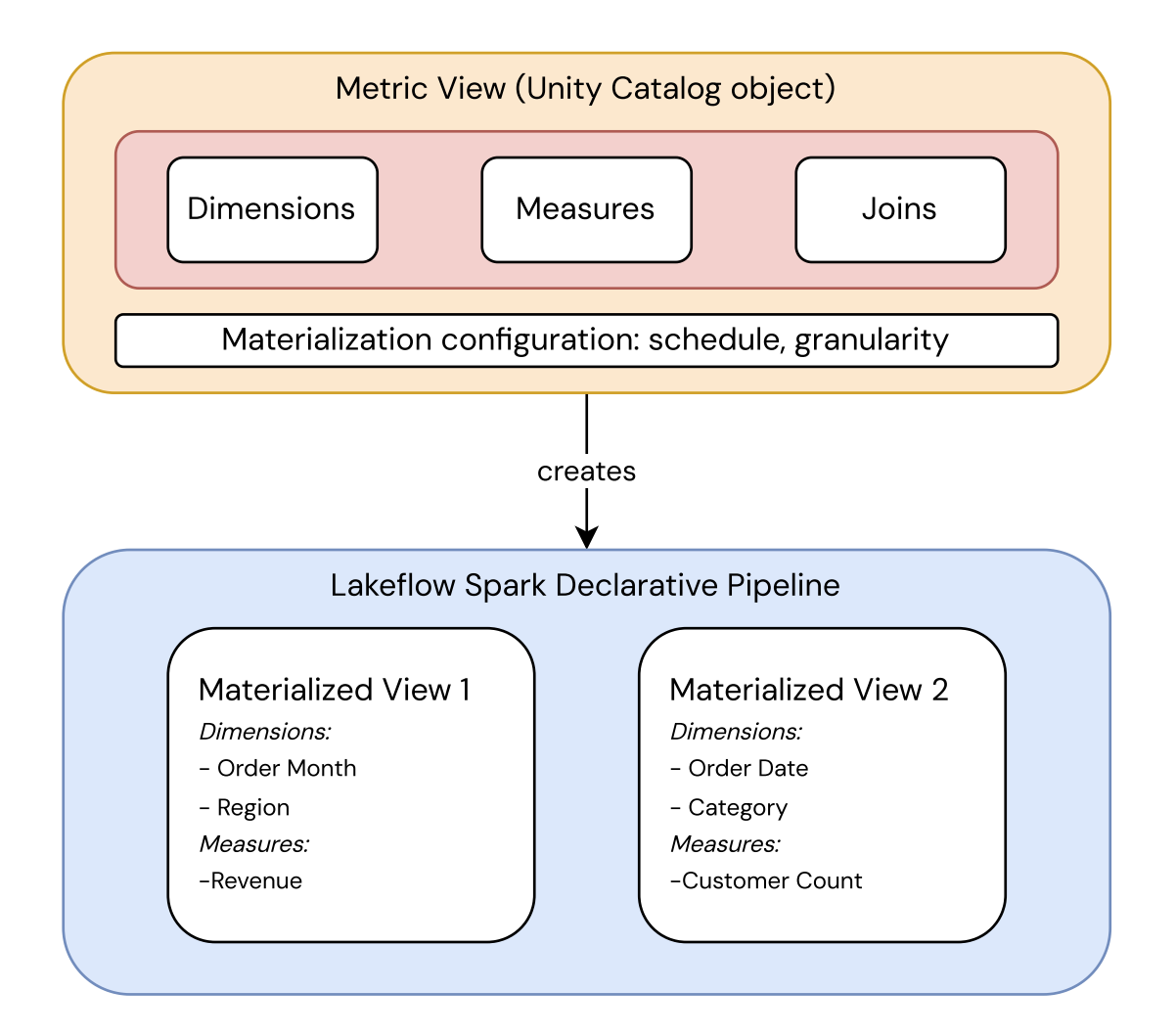

When you define a metric view with materialization, CREATE METRIC VIEW or ALTER METRIC VIEW specifies your dimensions, measures, and refresh schedule. Databricks creates a managed pipeline that maintains the materialized views.

The pipeline has two layers:

• Logic: The semantic layer that captures relationships, dimensions, and measures. This is the conceptual definition of what the metric means.
• Physical storage: The actual materialized representations of that logic. Multiple materializations can exist, for example pre-aggregated at different granularities, which enables fast query performance.

Query execution

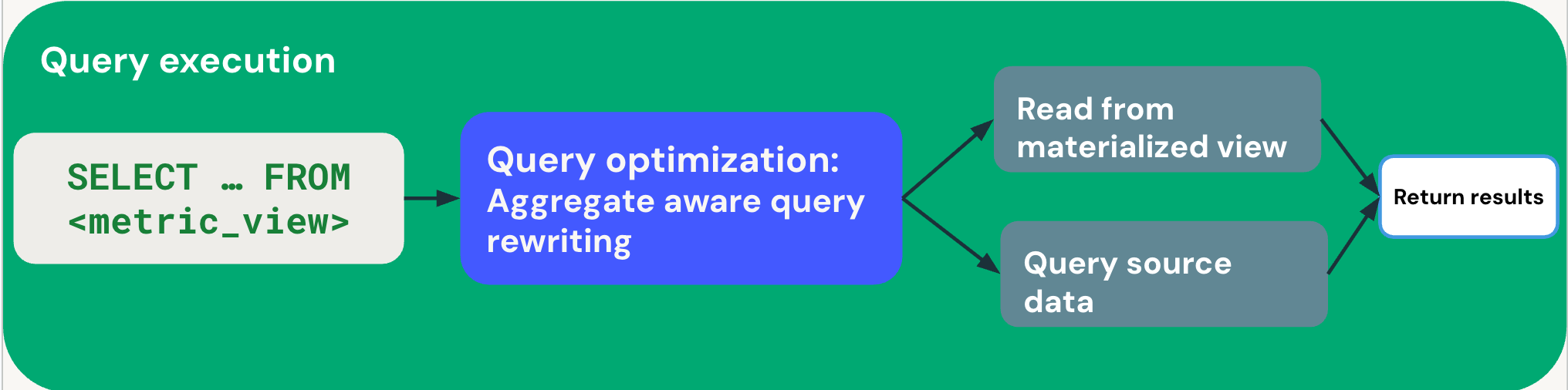

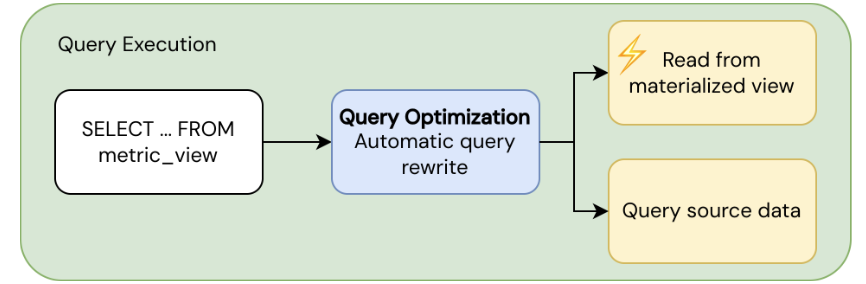

When you run SELECT ... FROM <metric_view>, the query optimizer uses aggregate-aware query rewriting to optimize performance:

• Fast path: Reads from pre-computed materialized views when a suitable materialization exists.
• Fallback path: Reads from source data directly when no suitable materialization is available.

The query optimizer automatically balances performance and freshness by choosing between materialized and source data. You receive results transparently regardless of which path is used.

Requirements

To use materialization for metric views:

• Your workspace must have serverless compute enabled. This is required to run Lakeflow Spark Declarative Pipelines.
• A SQL warehouse or compute resource running Databricks Runtime 17.3 or above.

Configuration reference

All information related to materialization is defined in a top-level field named materialization in the metric view YAML definition.

The materialization field contains the following required fields:

• schedule: Supports the same syntax as the schedule clause on materialized views.
• mode: Must be set to relaxed.
• materialized_views: A list of materialized views to materialize.
  • name: The name of the materialization.
  • dimensions: A list of dimensions to materialize. Only direct references to dimension names are allowed; expressions aren't supported.
  • measures: A list of measures to materialize. Only direct references to measure names are allowed; expressions aren't supported.
  • type: Specifies whether the materialized view is aggregated or not. Accepts two possible values: aggregated and unaggregated.
    • If type is aggregated, there must be at least one dimension or measure.
    • If type is unaggregated, no dimension or measures should be defined.

note

The TRIGGER ON UPDATE clause isn't supported for materialization for metric views.

Example definition

YAML

version: 1.1

source: prod.operations.orders_enriched_view

filter: revenue > 0

dimensions:
  - name: category
    expr: substring(category, 5)

  - name: color
    expr: color

measures:
  - name: total_revenue
    expr: SUM(revenue)

  - name: number_of_suppliers
    expr: COUNT(DISTINCT supplier_id)

materialization:
  schedule: every 6 hours
  mode: relaxed

  materialized_views:
    - name: baseline
      type: unaggregated

    - name: revenue_breakdown
      type: aggregated
      dimensions:
        - category
        - color
      measures:
        - total_revenue

    - name: suppliers_by_category
      type: aggregated
      dimensions:
        - category
      measures:
        - number_of_suppliers

Query rewrite mode

In relaxed mode, automatic query rewrite only verifies if candidate materialized views have the necessary dimensions and measures to serve the query.

The following checks are skipped:

• Whether the materialized view is up to date.
• Whether SQL settings match (for example, ANSI_MODE or TIMEZONE).
• Whether the materialized view returns deterministic results.

If the query includes any of the following conditions, the query rewrite doesn't occur and the query falls back to the source tables:

• Row-level security (RLS) or column-level masking (CLM) in materialized views.
• Non-deterministic functions like current_timestamp() in materialized views. These might appear in the metric view definition or in a source table used by the metric view.

note

During the experimental release period, relaxed is the only supported mode. If these checks fail, the query falls back to the source data.

Types of materializations for metric views

The following sections explain the types of materialized views available for metric views.

Aggregated type

This type pre-computes aggregations for specified measure and dimension combinations for targeted coverage.

This is useful for targeting specific common aggregation query patterns or widgets. Databricks recommends including potential filter columns as dimensions in the materialized view configuration. Potential filter columns are columns used at query time in the WHERE clause.

Unaggregated type

This type materializes the entire unaggregated data model (for example, the source, join, and filter fields) for wider coverage with less performance lift compared to the aggregated type.

Use this type when the following are true:

• The source is an expensive view or SQL query.
• Joins defined in your metric view are expensive.

note

If your source is a direct table reference without a selective filter applied, an unaggregated materialized view might not provide benefits.

Materialization lifecycle

This section explains how materializations are created, managed, and refreshed throughout their lifecycle.

Create and modify

Creating or modifying a metric view (using CREATE, ALTER, or Catalog Explorer) happens synchronously. Specified materialized views materialize asynchronously using Lakeflow Spark Declarative Pipelines.

When you create a metric view, Databricks creates a Lakeflow Spark Declarative Pipelines pipeline and schedules an initial update immediately if there are materialized views specified. The metric view remains queryable without materializations by falling back to querying from the source data.

When you modify a metric view, no new updates are scheduled, unless you are enabling materialization for the first time. Materialized views aren't used for automatic query rewrite until the next scheduled update is complete.

Changing the materialization schedule doesn't trigger a refresh.

See Manual refresh for finer control over refresh behavior.

Inspect underlying pipeline

Materialization for metric views is implemented using Lakeflow Spark Declarative Pipelines. A link to the pipeline is present in the Overview tab in Catalog Explorer. To learn how to access Catalog Explorer, see What is Catalog Explorer?.

You can also access this pipeline by running DESCRIBE EXTENDED on the metric view. The Refresh Information section contains a link to the pipeline.

SQL

DESCRIBE EXTENDED my_metric_view;

Example output:

SQL

-- Returns additional metadata such as parent schema, owner, access time etc.
> DESCRIBE TABLE EXTENDED customer;
                      col_name                       data_type    comment
 ------------------------------- ------------------------------ ----------
                           ...                             ...        ...

 # Detailed Table Information
                           ...                             ...

                      Language                            YAML
              Table properties                             ...
 # Refresh information
         Latest Refresh status                       Succeeded
                Latest Refresh                     https://...
              Refresh Schedule                   EVERY 3 HOURS

Manual refresh

From the link to the Lakeflow Spark Declarative Pipelines page, you can manually start a pipeline update to update the materializations. You can also trigger a manual refresh using the following SQL command:

SQL

REFRESH MATERIALIZED VIEW <metric-view-name>

Incremental refresh

The materialized views use incremental refresh whenever possible, and have the same limitations regarding data sources and plan structure.

For details on prerequisites and restrictions, see Incremental refresh for materialized views.

Automatic query rewrite

Queries to a metric view with materialization attempt to use its materializations as much as possible. There are two query rewrite strategies: exact match and unaggregated match.

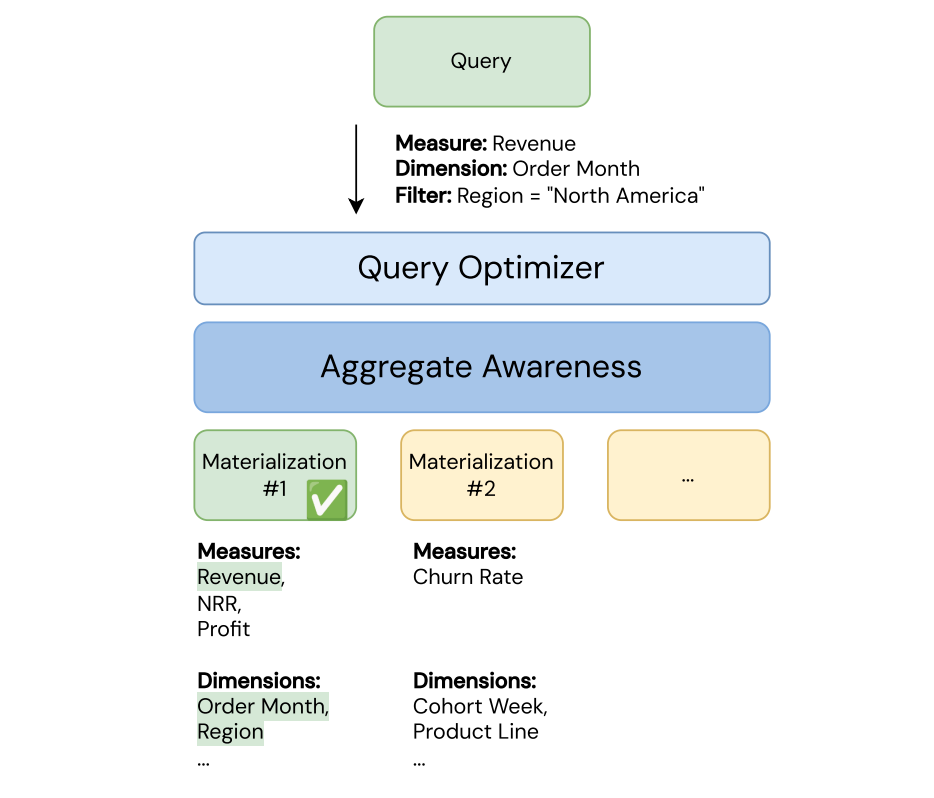

When you query a metric view, the optimizer analyzes the query and available user-defined materializations. The query automatically runs on the best materialization instead of the base tables using this algorithm:

1. First attempts an exact match.
2. If an unaggregated materialization exists, tries an unaggregated match.
3. If query rewriting fails, the query reads directly from the source tables.

note

Materializations must finish materializing before query rewrite can take effect.

Verify query is using materialized views

To check if a query is using a materialized view, run EXPLAIN EXTENDED on your query to see the query plan. If the query is using materialized views, the leaf node includes __materialization_mat___metric_view and the name of the materialization from the YAML file.

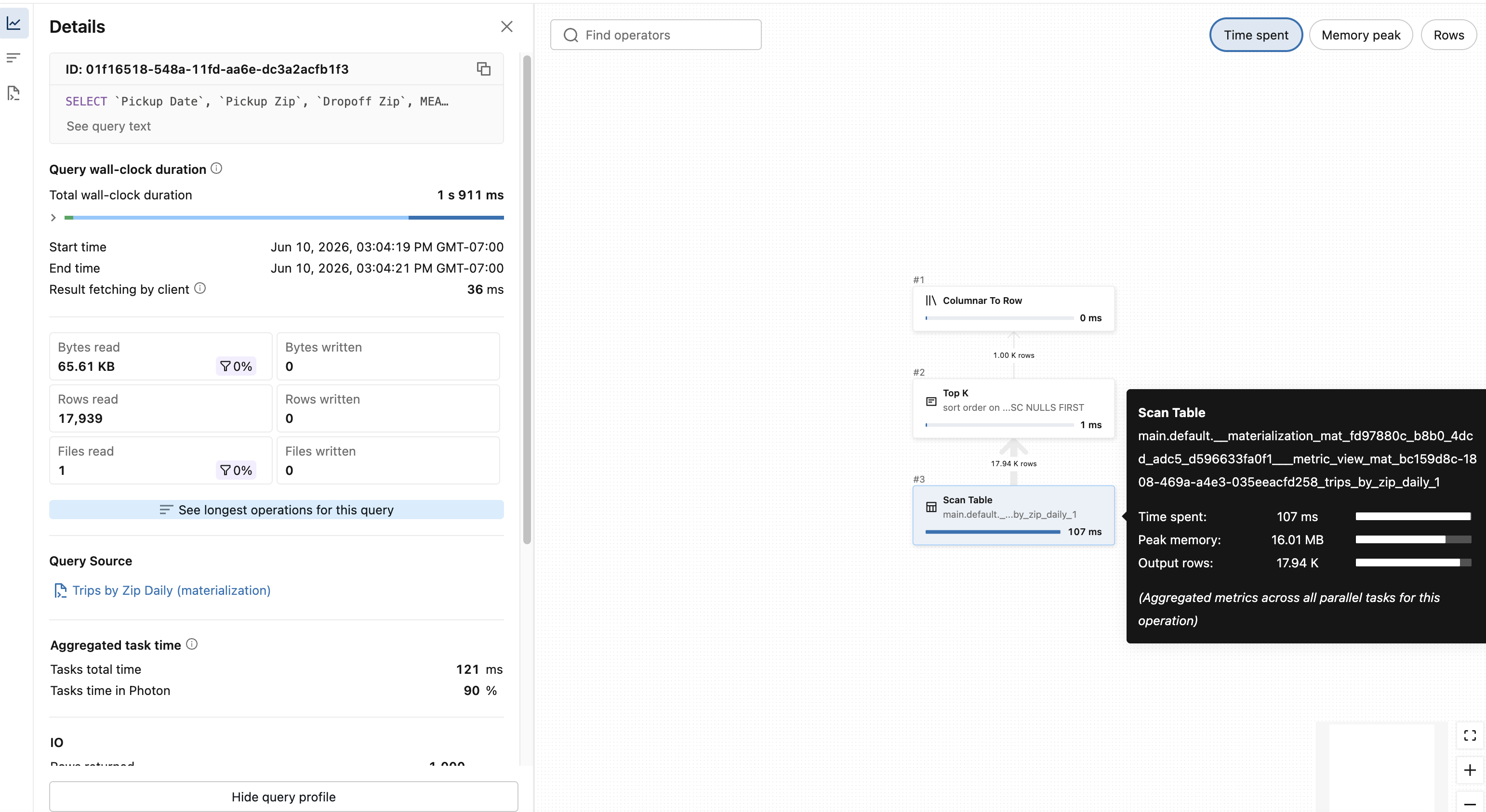

Alternatively, the query profile shows the same information.

Exact match

To be eligible for the exact match strategy, the grouping expressions of the query must precisely match the materialization dimensions. The aggregation expressions of the query must be a subset of the materialization measures.

Unaggregated match

If an unaggregated materialization is available, this strategy is always eligible.

Billing

Refreshing materialized views incurs Lakeflow Spark Declarative Pipelines usage charges.

Known restrictions

The following restrictions apply to materialization for metric views:

• A metric view with materialization that refers to another metric view as source can't have an unaggregated materialization.
