Create a visual data prep in Lakeflow Designer

Lakeflow Designer lets you build data transformation workflows on a visual, drag-and-drop canvas. This page explains how to create a visual data prep — from adding a data source and chaining operators to previewing results and writing to Unity Catalog.

Requirements

To use Lakeflow Designer, you must have:

• A Databricks workspace with Unity Catalog enabled.
• CAN USE permission on at least one general purpose compute resource (serverless or all-purpose).

Select which compute to use from the compute picker in the top right of Designer, next to the Schedule button.

Create a new visual data prep

To create a new visual data prep, click New in the sidebar and select Visual data prep.

Designer opens with a welcome screen where you can add a data source or explore a sample visual data prep.

To find your existing visual data prep files, open the Visual data prep page from the sidebar. This page lists all of your visual data prep files and includes a getting-started video to help you start using Lakeflow Designer.

Add a data source

Every visual data prep starts with one or more data sources. The Source operator represents a data source on the canvas.

To add a data source:

1. Add a Source operator. From the welcome screen, click Select source operator. From the canvas, open the operator menu and select Source.
2. In the Source configuration pane, choose how to bring in your data:
   • Select an existing table.
   • Upload a local CSV or Excel file.
   • Create a table from a file.
   • Import from Google Drive or SharePoint.
3. Select or configure your data source. The Source operator appears on the canvas.

You can also drag and drop a CSV or Excel file directly onto the canvas to quickly create a Source operator.

To change the source later, open the Source operator and click Select a new data source. Changing the source invalidates the output cache for all downstream operators.

For the full details on each ingestion option, see Ingest data into Lakeflow Designer.

Add and configure operators

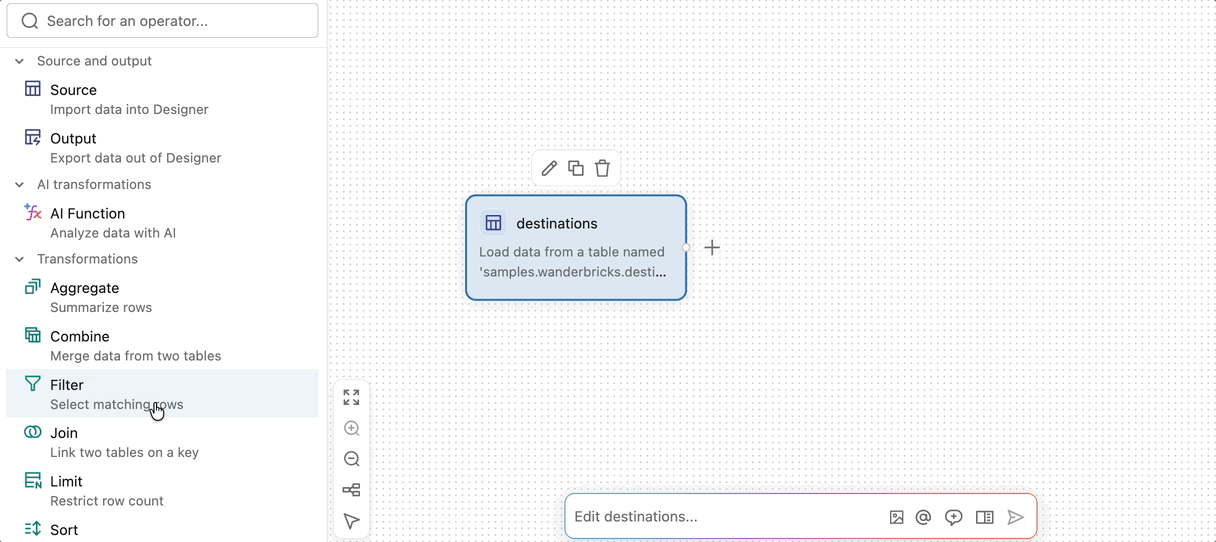

To add an operator, open the operator menu in the side pane on the left side of the canvas. Click an operator to add it to the canvas, or drag an operator from the menu onto the canvas. You can also click the + button next to any existing operator to add a new operator with an automatic connection.

To configure an operator, double-click it, or hover over it and click (Edit operator), to open the configuration pane. Set the options for that operator type, then click Apply.

For details on each available operator, see Built-in operators in Lakeflow Designer. For details on creating your own user-defined operators, see User-defined operators in Lakeflow Designer.

Connect operators

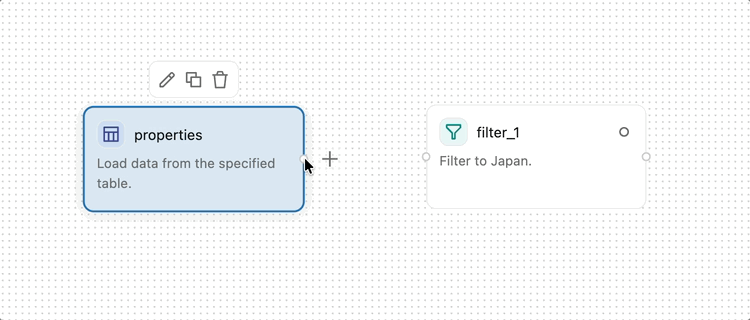

To connect two operators, click and drag from the output handle (the small circle on the right edge of an operator) to the input handle (the small circle on the left edge of the next operator). This specifies that data flows from the first operator into the second. Data flows from left to right through the visual data prep.

Some operators, such as Join and Combine, accept multiple inputs.

To remove a connection, hover over it and click in the toolbar that appears over the connection.

Use Genie Code

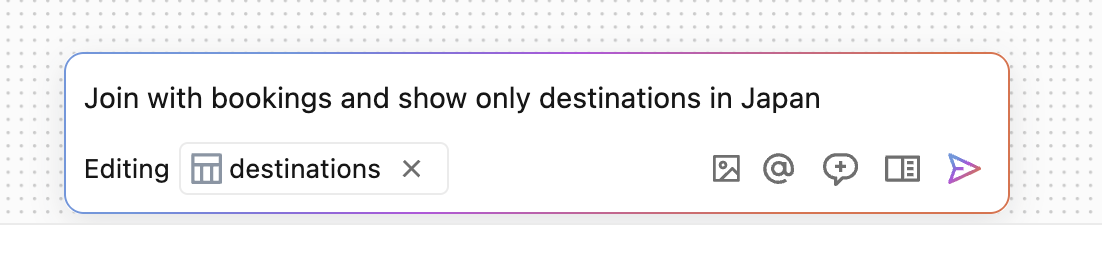

At any time while editing in Lakeflow Designer, you can create prompts to Genie Code to help. See Genie Code.

When using Genie Code, the following buttons provide additional functionality:

• : Attaches a file to use as part of the prompt.
• : Use to mention objects, such as tables or files, to use as part of the prompt.
• : Starts a new chat thread with new agent context.
• : Opens the side pane for conversation history, and a more detailed view of what the agent is doing.

Genie Code shows a one-line summary of its most recent edit above the input box.

Preview results

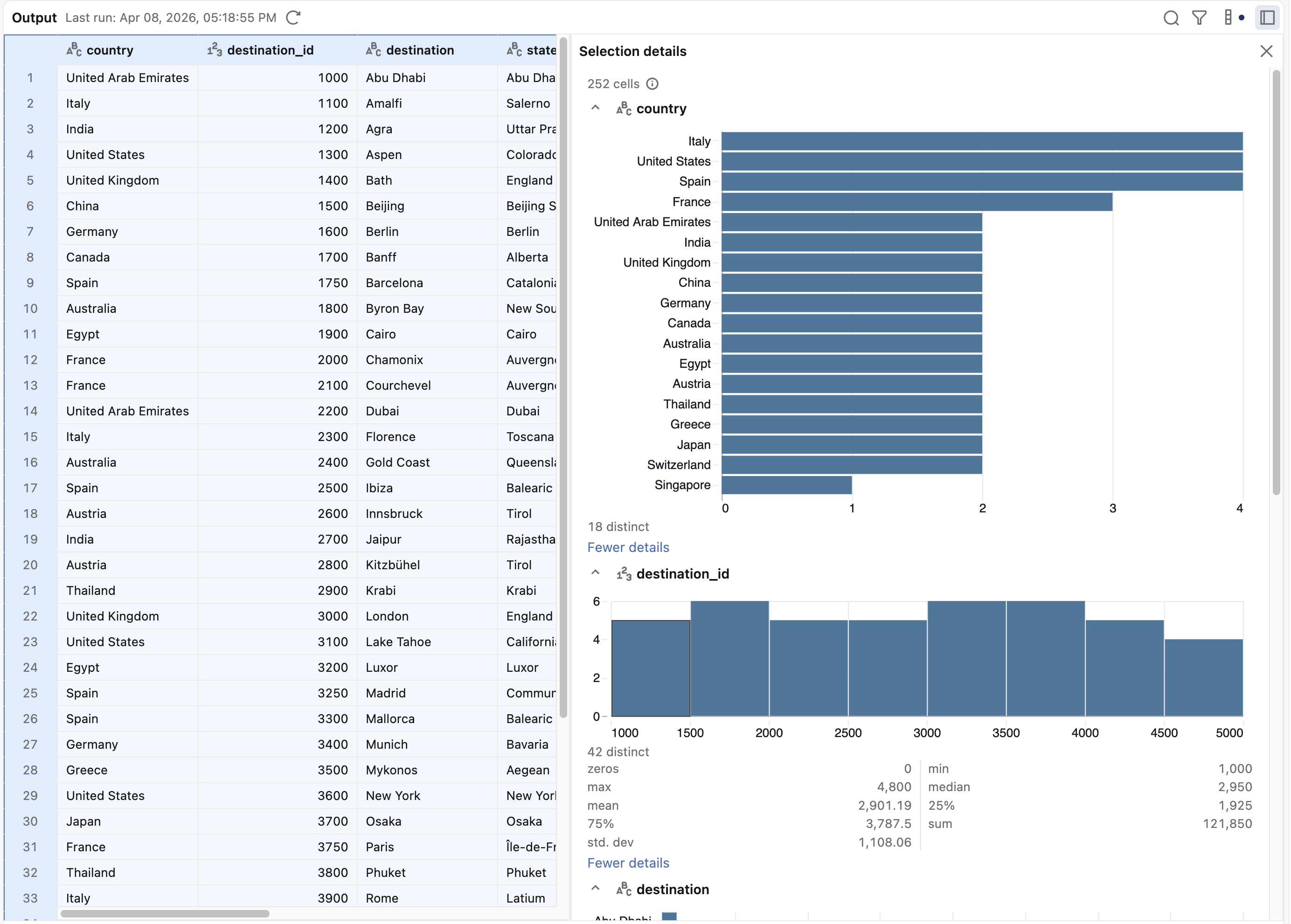

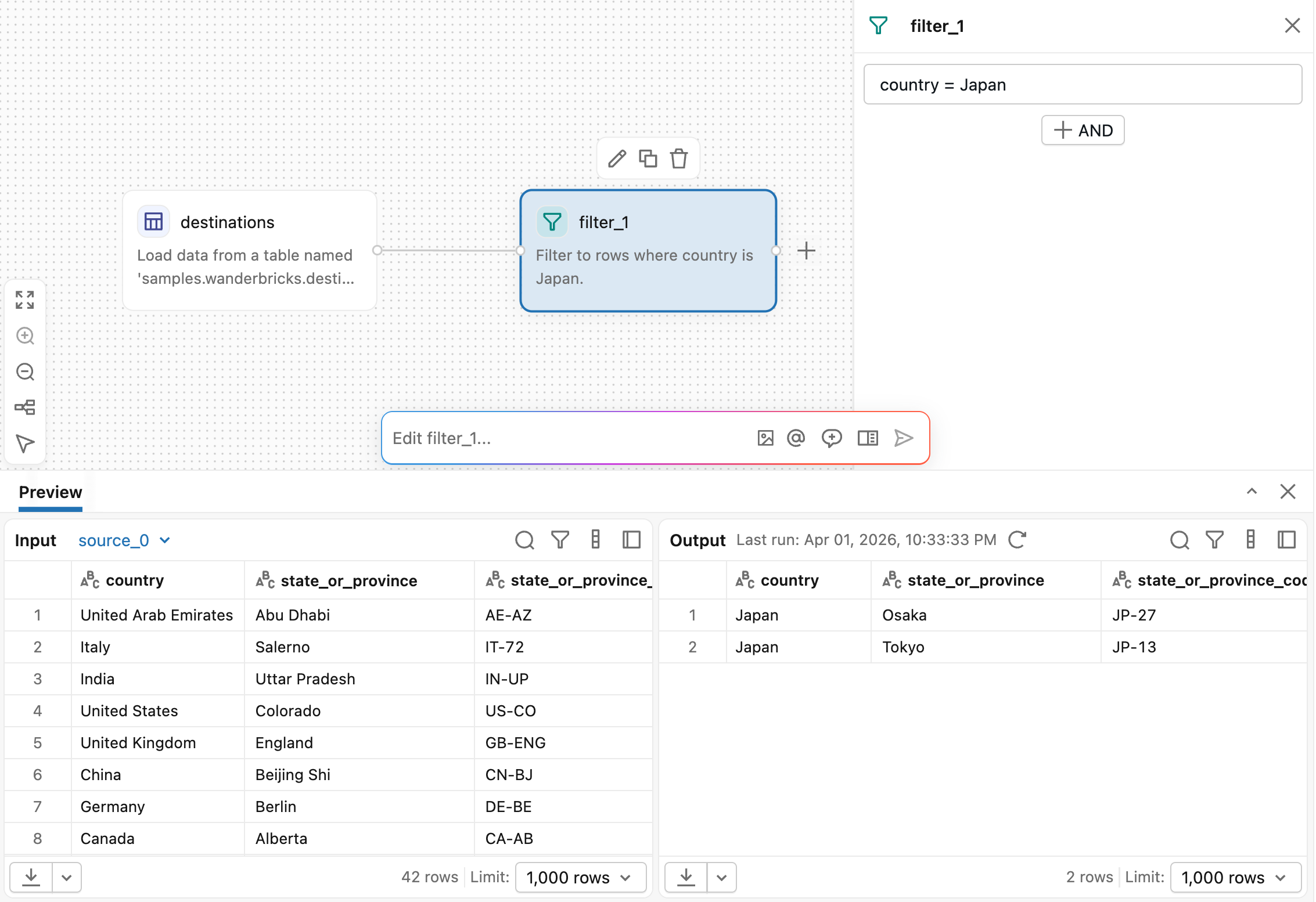

Select any operator to see the results in the output pane at the bottom of the screen. For most operator types, the input data is on the left and output data is on the right. Operators that produce non-table results, such as plots, HTML, or images, render those outputs directly in the output pane.

Use the view control in the output pane to switch between input and output (the default), input only, or output only. In the combined view, drag the divider to resize the input and output panes.

If the selected operator's run has performance data, click Performance in the output pane to open the full query profile.

By default, operators process a limited sample of data, for previews. Use the Preview menu in the toolbar to set the default number of input rows to process for previews. Select First N rows and enter a row limit, or select All rows.

The Rows scanned menu in the output pane can be used to override the preview row count for an individual operator.

• Rows scanned: Inherit: Uses the default from the Preview menu.
• Rows scanned: Limit: Processes the first N input rows. Enter the row limit in the field next to the menu.
• Rows scanned: All rows: Processes all input rows.

When you generate a preview for all rows, Designer shows the exact output row count beneath the operator on the canvas. For an operator with multiple outputs, hover over the row-count badge to see the count for each output.

warning

Generating a preview with Rows scanned: All rows reruns the operator and its upstream operators with the complete, unbounded dataset and can take a long time.

The Rows scanned setting controls preview processing only. Scheduled runs and job runs process the complete dataset.

Run the full visual data prep

Click Run all to run every operator on the canvas against the full dataset in a single action, without previewing each operator individually. Designer runs the entire visual data prep file and updates the results for each operator, then shows each operator's exact output row count beneath it on the canvas.

Transform data directly in the results table

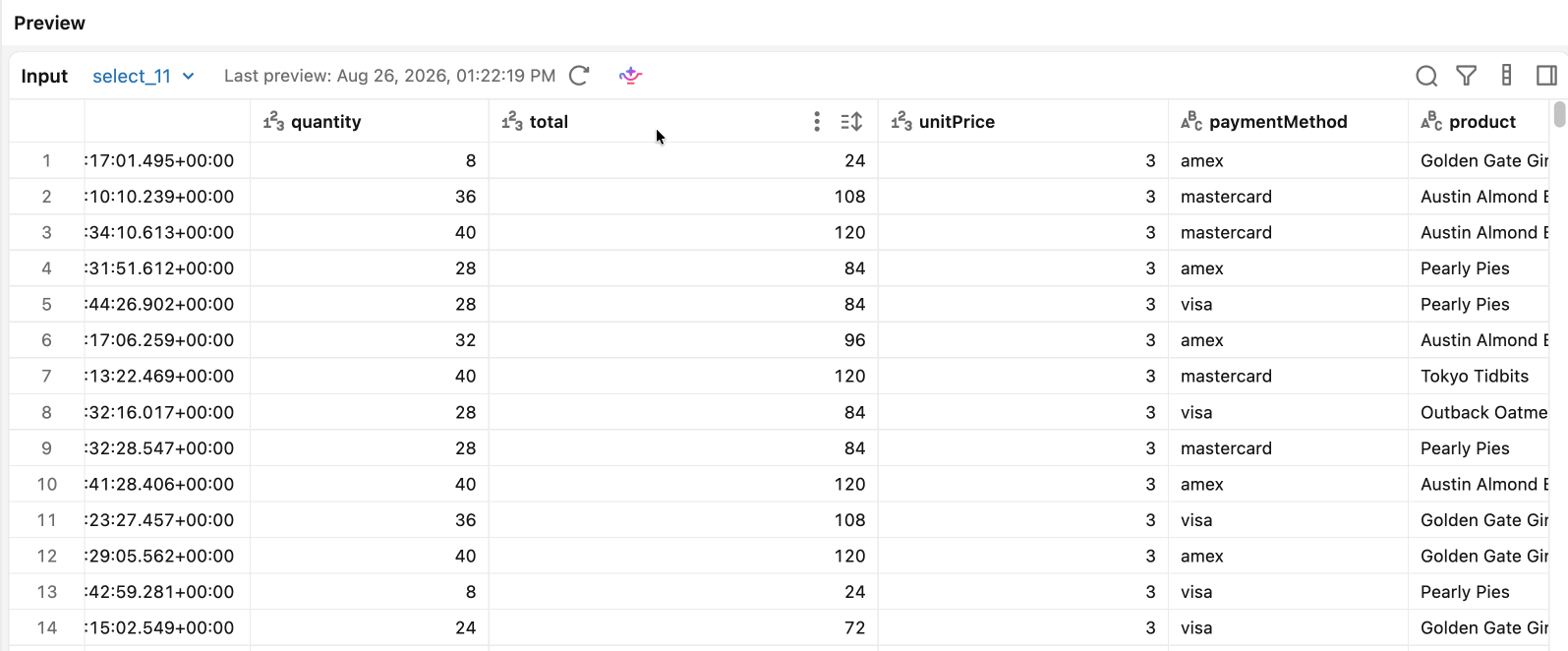

In addition to adding operators to transform your data, you can prepare your data by acting on it directly in the results table. In-preview edits change the preview sample only and collect as Pending changes; they don't alter your data or your workflow until you apply them.

The following actions are supported in the data preview:

• Insert a column: Select Insert column, then enter a name and an expression.
• Change a column's type: Select Change type and choose the target type.
• Remove null rows: Select Remove nulls to drop rows where the column is null.
• Filter rows: Add one or more filter conditions on the column.
• Rename a column: Double-click the column header and enter a new name.
• Hide, reorder, or remove columns: Hide or remove a column, or drag column headers to reorder them.
• Sort rows: Add a sort direction on the column. Sorting on more columns adds to the sort order.
• Remove duplicate rows: Select Remove duplicates, then choose the columns to compare.

Review and apply pending changes

Staged edits collect in the Pending changes pane. Open it to review or remove an edit before you apply it. To change a staged new column, double-click it in the preview and update its name or expression.

To add the staged edits to your workflow, select Apply to canvas. Lakeflow Designer adds one operator for each kind of edit, in the order you staged them. Each kind of edit maps to an operator:

Preview edit	Operator added to the canvas
Insert a column	Prepare
Change a column's type	Prepare
Remove null rows	Filter
Filter rows	Filter
Remove, rename, reorder, or hide columns	Select
Sort rows	Sort
Remove duplicate rows	Unique

Preview edit	Operator added to the canvas
Insert a column	Prepare
Change a column's type	Prepare
Remove null rows	Filter
Filter rows	Filter
Remove, rename, reorder, or hide columns	Select
Sort rows	Sort
Remove duplicate rows	Unique

note

If you switch the preview to process the full dataset while you have pending changes, Lakeflow Designer prompts you to apply them first so your staged edits aren't lost.

Download results

Use the download control in the output pane to export preview results to a file:

• Displayed rows: Download the rows currently shown in the preview, as CSV or Excel.
• All rows: Download the full dataset. Available when you have permission to run the workflow. Excel export of all rows requires serverless compute.

Your workspace administrator can turn off downloads.

Write results

Add an Output operator to write your results. The Output operator can write to a Unity Catalog table, publish results as a materialized view, or write a CSV, Excel, or JSON file to a Unity Catalog volume.

1. Open the operator menu and select Output, or click + next to your last operator and select Output.
2. Connect the output handle of your last transformation to the Output operator's input handle if not already connected.
3. Double-click the Output operator to open its configuration pane.
4. Select an Output type and configure the destination. For a table, enter a Table name, select the Output location (catalog and schema), and select a Write mode.
5. Click Run.

For the full set of output types and write modes, see Output.

Schedule or run in production

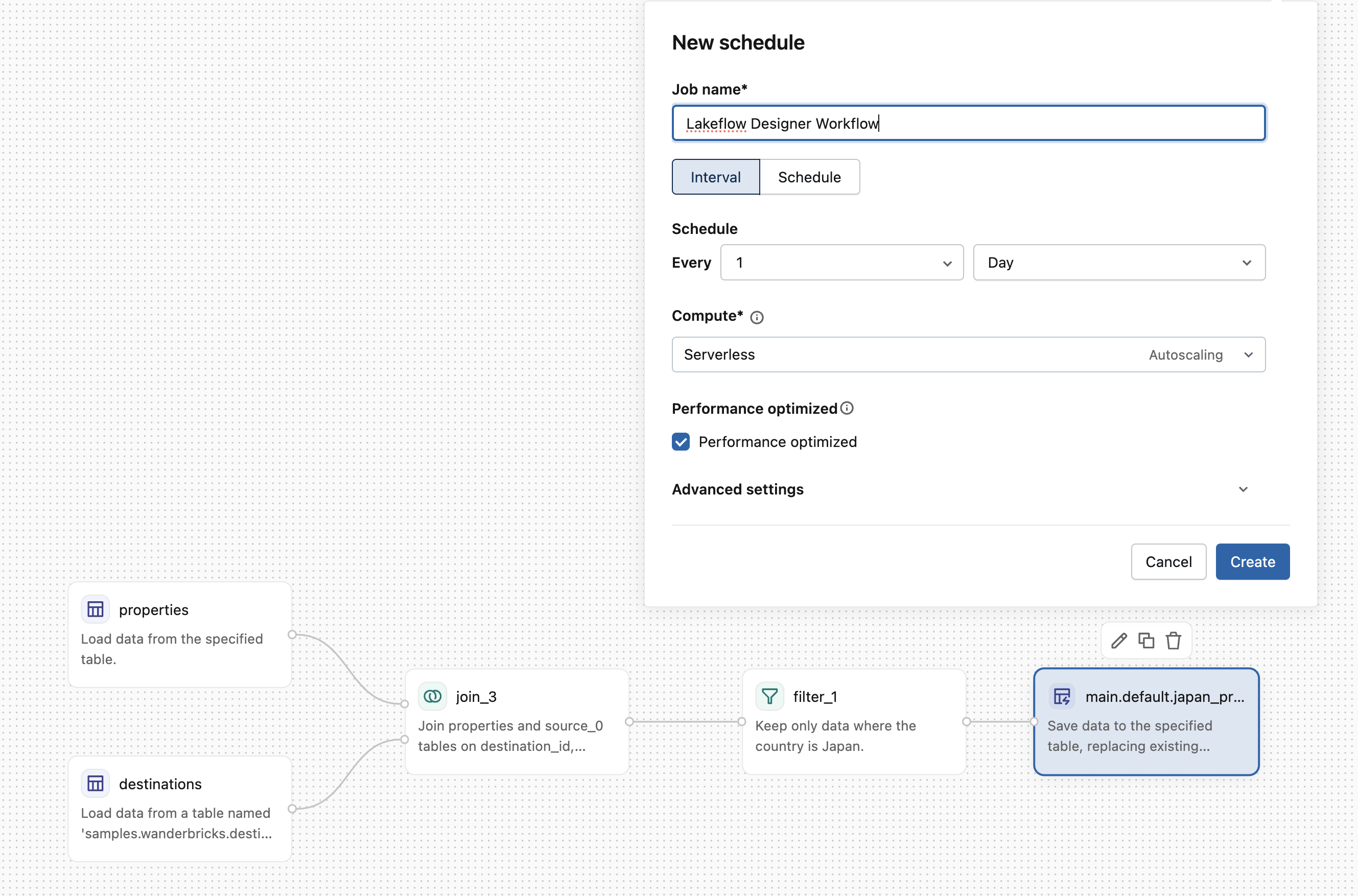

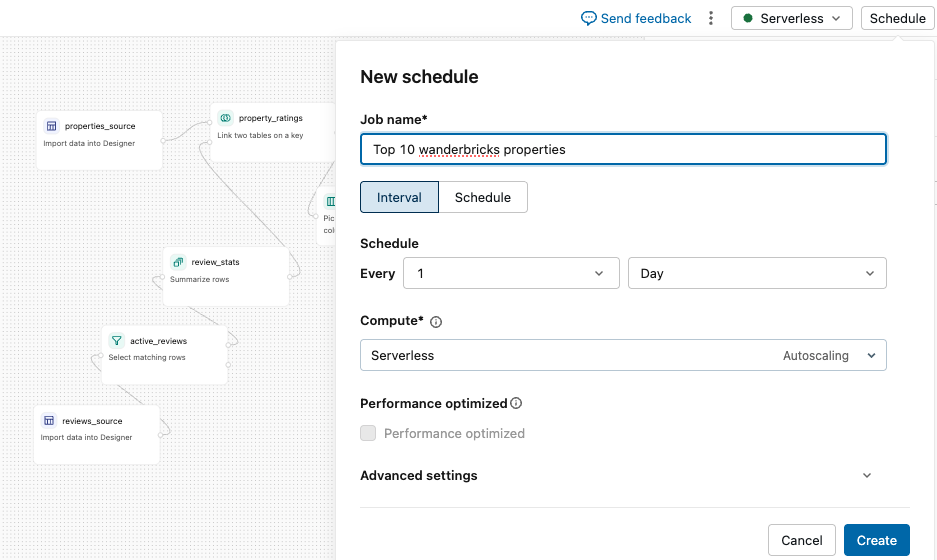

You can automate your workflows by scheduling them as jobs. Click the Schedule button in the top menu to create a scheduled job for your visual data prep, or add the visual data prep to a larger Databricks job as a task.

To move a visual data prep to production, including storing it in Git, deploying it with Declarative Automation Bundles, and parameterizing it across environments, see Move a visual data prep file to production.

Export and import a visual data prep file

Visual data prep files are stored natively in the workspace. You can export them and import them to move them between workspaces or share them.

To export a visual data prep file:

1. Click in the top-right corner.
2. Select File > Export.
3. The file is exported as <file_name>.designer.ipynb.

To import from the Visual data prep page:

1. Click the drop-down arrow next to New, then select Import file.
2. To import a .designer.ipynb file, select As visual data prep, then select the file. Designer opens the imported visual data prep in the editor.
3. To create a visual data prep with Source operators for uploaded files, select As source, then upload one or more CSV, JSON, Excel, or PDF files.

To import from the workspace file system:

1. In the workspace file system, click .
2. Select Import.
3. Select the visual data prep file to import.

To version a visual data prep file with Git and take it to production, see Move a visual data prep file to production.

Rename a visual data prep file

To rename a visual data prep file, click the tab showing its name at the top of the editor, then enter a new name.

Delete a visual data prep file

To delete a visual data prep file, open the kebab menu for the file and select Move to trash.

To delete multiple visual data prep files at once, open Workspace from the left navigation, select the files you want to remove, and select Move to trash at the top of the list.

Additional tips when working in the canvas

The following actions are available on the canvas to help you edit your visual data prep.

• Rename an operator: Click the box at the top of any configuration pane to rename the operator. Descriptive names make your visual data prep easier to understand at a glance. Some operators, such as the SQL operator, can reference the output of other operators by name.
• Copy an operator: Hover over an operator and click , or select an operator and press Cmd/Ctrl+C then Cmd/Ctrl+V.
• Delete an operator: Hover over an operator and click in the toolbar that appears above it, or select the operator and press Delete.
• Enable or disable an operator: Right-click an operator, or a group, and select Disable to exclude it from runs, or Enable to include it again. A disabled operator produces no output rows, so downstream operators receive an empty result until you enable it.
• Auto-layout: Click in the header toolbar to automatically arrange all operators in a compact layout.
• Fit view: Click in the header toolbar to see all operators in the current viewport.
• Undo and redo: Press Cmd/Ctrl+Z and Cmd/Ctrl+Shift+Z, or use the undo and redo buttons in the header toolbar.
• Open the command palette: Press Cmd+Shift+P on macOS or Ctrl+Shift+P on Windows to quickly access editor actions.
• View generated code: Select Table of contents in the left panel, select an operator, then expand the Generated code section to see the code Designer generates for it. For more, see The table of contents.
• View version history: Click in the right pane to open the visual data prep's version history, which lists its changes. Select a version to see a visual diff on the canvas that compares it with the following version, with added, removed, and changed operators highlighted. Hovering over an operator in the table of contents highlights the matching operator in both versions of the diff.
