Lakebase Change Data Feed

Region availability

Lakebase Autoscaling is the latest version of Lakebase, with autoscaling compute, scale-to-zero, branching, and instant restore. For supported regions, see Region availability. If you are a Lakebase Provisioned user, see Lakebase Provisioned.

note

Lakebase Change Data Feed is in Public Preview.

What is Lakebase Change Data Feed?

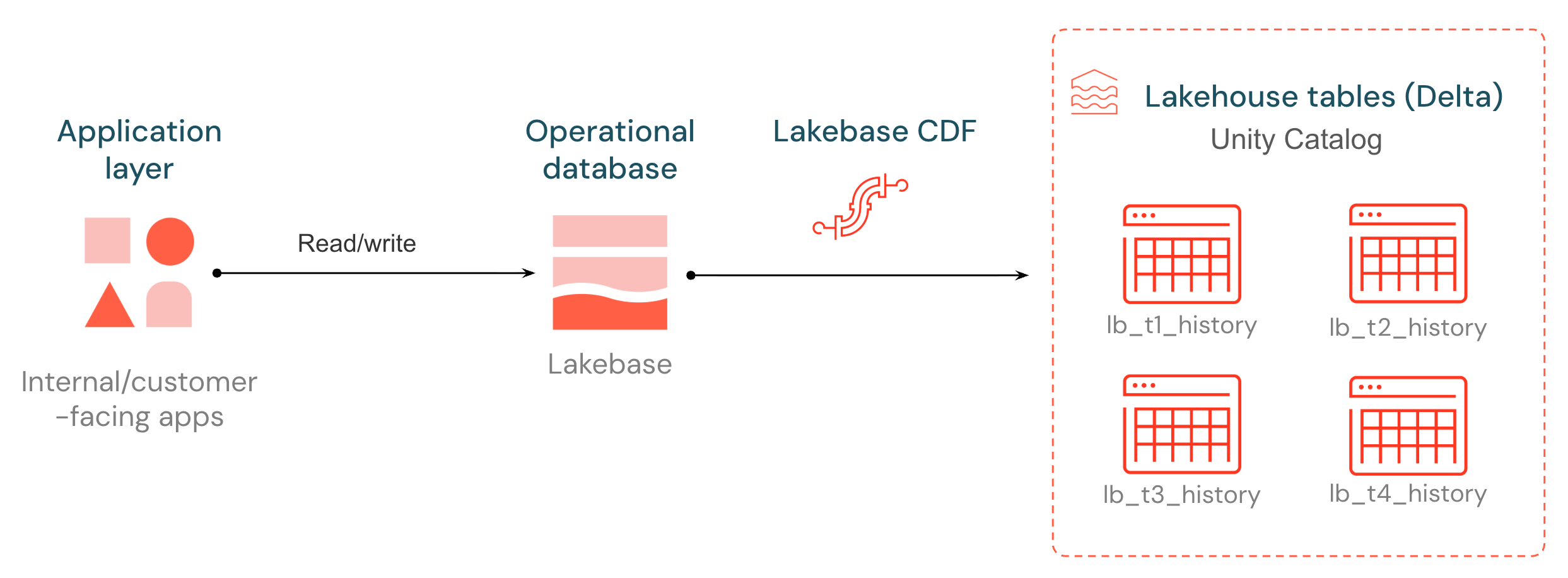

Lakebase introduces a native Change Data Feed (CDF), unlocking your operational data for downstream pipelines, models, and applications. Every insert, update, and delete on a Lakebase Postgres table is captured from the write-ahead log and stored as a new row in a Unity Catalog managed Delta table, batched and flushed every ~15 seconds. The change history is stored in an open format that any compute engine can read.

The destination tables follow the same shape as Delta Change Data Feed: each row carries a _pg_change_type, an LSN, a transaction ID, and a timestamp. Operational changes become a first-class source for ETL, audit, and downstream consumers — without standing up an external CDC stack.

Use cases

Lakebase CDF brings operational data into the lakehouse so downstream pipelines and applications can react to changes as they happen.

Use case	Description
ETL pipelines	Use Lakebase as the bronze source for medallion pipelines. Build incremental SDP or Spark Structured Streaming jobs against the change feed and update downstream silver and gold tables.
Audit logs	Maintain a complete, queryable history of every insert, update, and delete on a Lakebase table for compliance and forensics. The history is immutable Delta.
External systems	Store Lakebase change data in an open format that any engine can consume. Because the destination is a Delta table in Unity Catalog, external systems and non-Databricks readers can access the feed directly.

Enable this preview

A workspace admin must enable the Lakebase Change Data Feed preview from the workspace Previews page.

Requirements

• Lakebase Autoscaling: A Lakebase Autoscaling project running Postgres 17.
• Source database: Tables must reside in the databricks_postgres database in Lakebase. Each project is created with this default database. This is a known limitation.
• Unity Catalog: The identity configuring CDF needs USE CATALOG, USE SCHEMA, and CREATE TABLE on the destination catalog and schema. See Grant permissions on an object.
• Default storage: Destination catalogs configured with default storage are not supported.
• Lakebase project: Your Postgres role requires CAN MANAGE permissions on the Lakebase project. Project owners have CAN MANAGE by default. See Manage project permissions.
• Data types: See Data type mapping. Types without a direct Delta equivalent are stored as STRING.

Set up Lakebase CDF

To get started, set replica identity full on the tables you want in the feed (Step 1), then start CDF in the Lakebase app (Step 2). Your data appears as lb_<table_name>_history Delta tables in the Unity Catalog catalog and schema you choose.

Step 1: Set replica identity full

For a Lakebase table to participate in CDF, it must have REPLICA IDENTITY FULL set. By default Postgres logs only the primary key when a row is updated or deleted. Setting full identity tells Postgres to record both the before-and-after row state in the write-ahead log, which CDF needs to build a complete change history.

You can run these commands in the Lakebase SQL Editor or any Postgres client.

Single table

SQL

ALTER TABLE <table_name> REPLICA IDENTITY FULL;

All existing tables in a schema

To set replica identity on every existing table in a schema (public in this example), run:

SQL

DO $$
DECLARE r record;
BEGIN
  FOR r IN
    SELECT table_schema, table_name
    FROM information_schema.tables
    WHERE table_schema = 'public'
      AND table_type = 'BASE TABLE'
  LOOP
    EXECUTE format(
      'ALTER TABLE %I.%I REPLICA IDENTITY FULL;',
      r.table_schema, r.table_name
    );
  END LOOP;
END $$;

Auto-apply to future tables

To make every newly-created table automatically receive REPLICA IDENTITY FULL, install a Postgres event trigger. It runs after every CREATE TABLE and sets the identity on the new table:

SQL

CREATE OR REPLACE FUNCTION public.set_full_replica_identity()
RETURNS event_trigger
LANGUAGE plpgsql
AS $$
DECLARE
  obj record;
BEGIN
  FOR obj IN
    SELECT * FROM pg_event_trigger_ddl_commands()
    WHERE command_tag = 'CREATE TABLE'
  LOOP
    EXECUTE format(
      'ALTER TABLE %s REPLICA IDENTITY FULL;',
      obj.object_identity
    );
  END LOOP;
END $$;

CREATE EVENT TRIGGER set_full_replica_identity_on_create
ON ddl_command_end
WHEN TAG IN ('CREATE TABLE')
EXECUTE FUNCTION public.set_full_replica_identity();

Combine the event trigger with the loop in the previous tab to cover both existing and future tables in one setup.

Check which tables have replica identity set

To see which tables in a schema have replica identity configured, run:

SQL

SELECT n.nspname AS table_schema,
       c.relname AS table_name,
       CASE c.relreplident
         WHEN 'd' THEN 'default'
         WHEN 'n' THEN 'nothing'
         WHEN 'f' THEN 'full'
         WHEN 'i' THEN 'index'
       END AS replica_identity
FROM pg_class c
JOIN pg_namespace n ON n.oid = c.relnamespace
WHERE c.relkind = 'r'
  AND n.nspname = 'public'
ORDER BY n.nspname, c.relname;

Only rows with replica_identity = 'full' are ready for CDF.

Step 2: Start the change data feed

Lakebase CDF is configured at the schema level. Once started, every current and future table in the source schema is included in the feed.

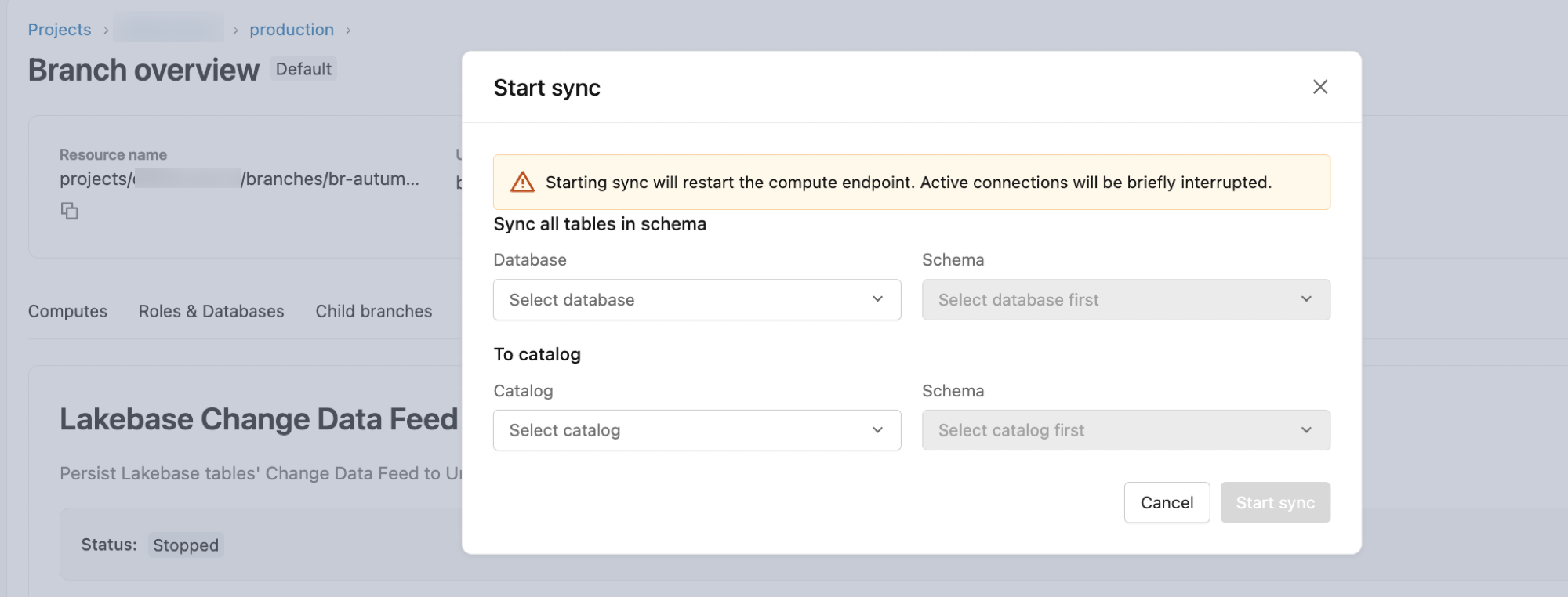

1. In your Databricks workspace, open Lakebase Postgres from the app switcher (top right).
2. Select your Lakebase project and the branch you want to use (for example, production or main).
3. Open Branch overview and click the Change Data Feed tab.
4. Click Start.
5. In the configuration dialog:
   • Database: Defaults to databricks_postgres.
   • Schema: Select the source Postgres schema.
   • To Catalog: Select the destination Unity Catalog catalog.
   • Schema: Select the destination Unity Catalog schema.
6. Click Start to begin the feed.

Tables appear in the destination as lb_<table_name>_history. To find them, open Catalog in the sidebar, navigate to the destination catalog and schema, and open the Tables tab.

The Change Data Feed tab in Lakebase has two sub-tabs:

• Schemas: Lists each source schema, its destination catalog and schema in Unity Catalog, and a status.
• Tables: Lists each source table, its destination lb_<table_name>_history table, status (Streaming or Snapshotting), Committed LSN (how far the feed has written to Delta, shown as - while still in initial snapshot), and Last update (last time the table received changes).

You can also inspect feed state from Postgres by running this in the Lakebase SQL Editor:

SQL

SELECT * FROM wal2delta.tables;

The result includes table_oid, status (STREAMING or SNAPSHOTTING), committed_lsn, and last_write_time per table.

info

What is wal2delta? Lakebase CDF is powered by the wal2delta Postgres extension, which runs inside the Lakebase compute. It uses logical decoding to capture write-ahead log (WAL) changes and writes them to Delta tables in Unity Catalog.

Destination table schema

CDF writes one Delta table per source table, named lb_<table_name>_history in your destination catalog and schema. In addition to your source columns, each row carries these system columns:

Column	Type	Description
_pg_change_type	TEXT	Operation type: insert, delete, update_preimage, or update_postimage.
_pg_lsn	BIGINT	Postgres Log Sequence Number.
_pg_xid	INTEGER	Postgres Transaction ID.
_timestamp	TIMESTAMP	Timestamp when the change was processed (without timezone).
_sort_by	BIGINT	Monotonic sort key used to order all changes.

Common change patterns

• Initial snapshot: The first time CDF runs on an existing Lakebase table, each existing row is written with _pg_change_type = 'insert'.
• Updates: An update produces two rows: one with _pg_change_type = 'update_preimage' (old row) and one with _pg_change_type = 'update_postimage' (new row).
• Deletes: A delete produces one row with _pg_change_type = 'delete'.

These are the same change events as Delta Change Data Feed, so the same downstream patterns apply.

Operational behavior

• Naming collisions: If two source tables would map to the same destination name (for example, sales.users and marketing.users both mapping to lb_users_history), CDF writes the first to lb_users_history and auto-suffixes the second to lb_users_history_1. You can rename either destination table in Unity Catalog and the feed continues to work.
• Schema-level scope: When you start CDF on a Lakebase schema, every current and future table in that schema is included. Empty tables are skipped — a table must have at least one row to appear in the destination.
• Dropped source tables: If you drop a table in Lakebase, the destination Delta table in Unity Catalog is preserved.

Build downstream pipelines

Lakebase CDF is designed for downstream pipelines that react to operational changes. The patterns below show three ways to consume the feed, ordered from simplest to most flexible.

Example scenario. An e-commerce app records orders in a Postgres orders table, each row carrying an item_id and quantity. The logistics team needs live inventory levels. With CDF, every change to orders is stored in the lb_orders_history Delta table in Unity Catalog. Downstream pipelines read that change feed and update an inventory_levels table whenever an order is placed, edited, or cancelled.

Compute current inventory with a materialized view

The simplest pattern is a SQL materialized view over the history table. The MV refreshes incrementally as new change events arrive, and downstream consumers query it like any other table.

SQL

CREATE MATERIALIZED VIEW inventory_levels AS
SELECT
  item_id,
  SUM(
    CASE
      -- New orders (and the "new half" of updates) decrement inventory
      WHEN _pg_change_type IN ('insert', 'update_postimage') THEN -quantity
      -- Cancellations (and the "old half" of updates) restore inventory
      WHEN _pg_change_type IN ('delete', 'update_preimage') THEN quantity
      ELSE 0
    END
  ) AS current_inventory,
  MAX(_timestamp) AS last_transaction_ts,
  MAX(_pg_lsn) AS last_lsn
FROM lb_orders_history
GROUP BY item_id;

The two rows produced for every update cancel each other except for the net change, so the running sum stays correct as orders are edited.

Stream changes with Spark Declarative Pipelines

For a structured medallion architecture, use Spark Declarative Pipelines (SDP) to declare bronze, silver, and gold tables. SDP runs them as a connected pipeline with checkpoints and dependency management handled for you.

Python

import dlt
from pyspark.sql import functions as F

@dlt.table
def inventory_adjustments():
    return (
        spark.readStream.table("<catalog>.<schema>.lb_orders_history")
        .withColumn(
            "delta",
            F.when(F.col("_pg_change_type").isin("insert", "update_postimage"), -F.col("quantity"))
             .when(F.col("_pg_change_type").isin("delete", "update_preimage"), F.col("quantity"))
             .otherwise(0),
        )
        .select("item_id", "delta", "_timestamp")
    )

@dlt.expect_or_drop("non_negative_stock", "on_hand >= 0")
@dlt.table
def inventory_levels():
    return (
        spark.read.table("LIVE.inventory_adjustments")
        .groupBy("item_id")
        .agg(F.sum("delta").alias("on_hand"))
    )

inventory_adjustments reads lb_orders_history incrementally with readStream and produces a per-event delta. inventory_levels aggregates by item_id to compute current stock. The expectation drops rows that would push stock negative, signaling a bug upstream.

For a full end-to-end walkthrough, see Tutorial: Build an ETL pipeline using change data capture.

Custom processing with Spark Structured Streaming

When you need full control — for example, custom merges, side effects, or multiple sinks — read the history table directly with Spark Structured Streaming and use foreachBatch to write to your destination.

Python

from pyspark.sql import functions as F
from delta.tables import DeltaTable

def update_inventory(batch_df, batch_id):
    deltas = (
        batch_df
        .withColumn(
            "delta",
            F.when(F.col("_pg_change_type").isin("insert", "update_postimage"), -F.col("quantity"))
             .when(F.col("_pg_change_type").isin("delete", "update_preimage"), F.col("quantity"))
             .otherwise(0),
        )
        .groupBy("item_id")
        .agg(F.sum("delta").alias("delta"))
    )

    target = DeltaTable.forName(spark, "<catalog>.<schema>.inventory_levels")
    (target.alias("t")
        .merge(deltas.alias("s"), "t.item_id = s.item_id")
        .whenMatchedUpdate(set={"on_hand": F.expr("t.on_hand + s.delta")})
        .whenNotMatchedInsert(values={"item_id": "s.item_id", "on_hand": "s.delta"})
        .execute())

(spark.readStream.table("<catalog>.<schema>.lb_orders_history")
    .writeStream
    .foreachBatch(update_inventory)
    .option("checkpointLocation", "/Volumes/<catalog>/<schema>/checkpoints/inventory_levels")
    .start())

Each microbatch aggregates the change events by item_id and merges the net deltas into inventory_levels.

Data type mapping

CDF supports most standard PostgreSQL primitive types. Types without a direct Delta equivalent are stored as STRING.

PostgreSQL type	Databricks Delta type	Notes
BOOLEAN	BOOLEAN
INT, SMALLINT, BIGINT	INT, SMALLINT, BIGINT
TEXT, VARCHAR, CHAR	STRING
JSONB	STRING	Stored as a JSON string.
ENUM	STRING	Stored as the enum label.
NUMERIC / DECIMAL	DECIMAL or STRING	Uses source precision/scale when possible. Performs lossless rescaling for incompatible precision/scale values. Falls back to STRING when precision exceeds 38 or when precision/scale are undefined (unbounded NUMERIC). All NUMERIC/DECIMAL columns are nullable because NaN values are mapped to NULL. See PostgreSQL numeric types.
DATE	DATE
TIMESTAMP	TIMESTAMP_NTZ
TIMESTAMPTZ	TIMESTAMP
FLOAT, DOUBLE	FLOAT, DOUBLE

Types stored as STRING:

• Geography/Geometry (PostGIS): Types from the PostGIS extension (for example, geometry, geography).
• Vector (pgvector): The vector type from the pgvector extension.
• Composite/struct types: Custom types defined with CREATE TYPE ... AS (field_name type, ...). These are row-like types with named fields.
• Map: Map-like key-value types such as hstore (from the hstore extension). Postgres has no built-in map type. hstore is the common way to store key-value pairs in a column.

Managing schema changes

• Renaming a table in Postgres (for example, ALTER TABLE users RENAME TO customers) lets the feed continue. The destination Delta table name does not change — it stays lb_users_history.
• Schema changes (adding a column, dropping a column, or changing a column's data type) trigger a re-snapshot of the affected table. CDF re-reads the entire table from Postgres and rewrites it to the destination Delta table.

Disable Lakebase CDF

Disabling CDF stops the feed for all Lakebase schemas in the project.

1. In your Databricks workspace, open Lakebase Postgres from the app switcher (top right).
2. Select your Lakebase project and the branch where you configured CDF.
3. Open Branch overview and click the Change Data Feed tab.
4. Click Disable. In the confirmation dialog, review the warning that changes will stop flowing to Delta tables, then click Disable again to confirm.

Disabling CDF does not restart your compute.

warning

If you re-enable CDF later, the system does not perform a full re-snapshot. Any changes that occurred while CDF was disabled are permanently missing from the destination Delta tables.

Limitations and troubleshooting

You can see per-table status (snapshotting, skipped, or streaming) in the Change Data Feed tab, or by running this in Lakebase:

SQL

SELECT * FROM wal2delta.tables;

Common reasons a table does not appear in the feed:

• REPLICA IDENTITY FULL not set: Run ALTER TABLE <table_name> REPLICA IDENTITY FULL; for the table. See Step 1: Set replica identity full.
• Partitioned tables: Lakebase partitioned tables are not supported. A schema that contains partitioned tables causes those tables to fail.
• Empty tables: A table with zero rows is skipped until at least one row exists.

Next steps

• Build incremental ETL with Spark Declarative Pipelines. See Tutorial: Build an ETL pipeline using change data capture for a full walkthrough.
• Query the bronze layer with Databricks SQL. See Get started with data warehousing using Databricks SQL.
• Audit history with time travel queries on the destination Delta tables.
