Create and manage providers with Model Provider Services

Learn how to register a provider as a model provider service, grant access to it, configure Unity Gateway features, and delete it.

Requirements

• CREATE SERVICE on the schema where you create the model provider service, plus USE CATALOG and USE SCHEMA on its catalog and schema.
• The credentials for the external provider you want to register (for example, an OpenAI API key or an AWS access key pair).
• To authenticate Google Gemini Enterprise with a service credential instead of an API key, you must have an existing service credential and ACCESS on it. See Authenticate Google Gemini Enterprise with a service credential.

To back a provider credential with a customer-owned Unity Catalog secret instead of storing the value inline, you must have an existing Unity Catalog secret and READ SECRET on it. See Back a provider credential with a Unity Catalog secret.

Create a model provider service

Model provider services and model services share a single name namespace within a Unity Catalog schema. You can't use a name for a model provider service if a model service in the schema already uses it, and vice versa.

Create a model provider service in the Unity Gateway UI or Catalog Explorer. To create one programmatically, use the REST API, the Databricks SDKs, the Databricks CLI, Terraform, or Declarative Automation Bundles (DABs).

UI

1. Do one of the following:
   • In the workspace sidebar, click AI Gateway, then open the Providers tab and click Provider.
   • In Catalog Explorer, go to the schema where you want to create the model provider service, click Create > Service, then select Model provider service in the Create a service dialog.
2. Enter a name for the model provider service, and select the catalog and schema to create it in. If you start from Catalog Explorer, Catalog Explorer prefills the catalog and schema.
3. Select the provider type, and enter the provider's connection details and credentials.
4. Click Create. Databricks encrypts and stores the credentials. The UI does not display them after this point.

REST API

Send a POST to /api/2.1/unity-catalog/model-provider-services, passing parent and model_provider_service_id as query parameters. Set provider_type and exactly one matching provider block; targets allowlists the reachable upstream models, and secrets are supplied inline as plaintext:

Bash

databricks api post \
  "/api/2.1/unity-catalog/model-provider-services?parent=schemas/main.default&model_provider_service_id=my_provider" \
  --json '{
  "comment": "Routes to a custom OpenAI-compatible provider",
  "config": {
    "provider_type": "EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM",
    "targets": [
      { "model": "gpt-4o", "native_api_types": ["openai/v1/chat/completions"] }
    ],
    "custom": {
      "direct": {
        "base_url": "https://api.example.com/v1",
        "api_key": { "plaintext": "dummy-api-key" }
      }
    }
  }
}'

CLI

Pass the parent schema and a leaf name, and supply the config with --json. Set provider_type and exactly one matching provider block; targets allowlists the reachable upstream models, and secrets are supplied inline as plaintext. To install the CLI, see Install or update the Databricks CLI.

Bash

databricks ai-gateway create-model-provider-service schemas/main.default my_provider --json '{
  "comment": "Routes to a custom OpenAI-compatible provider",
  "config": {
    "provider_type": "EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM",
    "targets": [
      { "model": "gpt-4o", "native_api_types": ["openai/v1/chat/completions"] }
    ],
    "custom": {
      "direct": {
        "base_url": "https://api.example.com/v1",
        "api_key": { "plaintext": "dummy-api-key" }
      }
    }
  }
}'

Terraform

Create and manage a model provider service with the Databricks Terraform provider and the databricks_ai_gateway_model_provider_service resource. Keep real keys out of source control by passing the API key through a sensitive = true variable (set it with -var or a TF_VAR_provider_api_key environment variable):

Hcl

variable "provider_api_key" {
  type      = string
  sensitive = true
}

resource "databricks_ai_gateway_model_provider_service" "example" {
  parent                    = "schemas/main.default"
  model_provider_service_id = "my_provider"
  comment                   = "Routes to a custom OpenAI-compatible provider"

  config = {
    provider_type = "EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM"

    targets = [{
      model            = "gpt-4o"
      native_api_types = ["openai/v1/chat/completions"]
    }]

    custom = {
      direct = {
        base_url = "https://api.example.com/v1"
        api_key  = { plaintext = var.provider_api_key }
      }
    }
  }
}

DABs (Beta)

Define the model provider service in a bundle and deploy it with databricks bundle deploy. Keep real keys out of source control by passing the API key through a bundle variable (set it with --var or a BUNDLE_VAR_provider_api_key environment variable):

YAML

variables:
  provider_api_key:
    description: Provider API key.

resources:
  model_provider_services:
    my_provider:
      parent: schemas/main.default
      model_provider_service_id: my_provider
      comment: Routes to a custom OpenAI-compatible provider
      config:
        provider_type: EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM
        targets:
          - model: gpt-4o
            native_api_types: [openai/v1/chat/completions]
        custom:
          direct:
            base_url: https://api.example.com/v1
            api_key:
              plaintext: ${var.provider_api_key}

Python SDK

Create and manage a model provider service with the Databricks SDK for Python:

Python

from databricks.sdk.service import catalog as c

model_provider_service = w.ai_gateway.create_model_provider_service(
    parent="schemas/main.default",
    model_provider_service_id="my_provider",
    model_provider_service=c.ModelProviderService(
        comment="Routes to a custom OpenAI-compatible provider",
        config=c.ModelProviderServiceConfig(
            provider_type=(
                c.ModelProviderServiceConfigExternalModelProviderType
                .EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM
            ),
            targets=[
                c.ModelProviderServiceConfigModelTargetConfig(
                    model="gpt-4o",
                    native_api_types=["openai/v1/chat/completions"],
                )
            ],
            custom=c.ModelProviderServiceConfigCustomProviderConfig(
                direct=c.ModelProviderServiceConfigCustomProviderDirectConfig(
                    base_url="https://api.example.com/v1",
                    api_key=c.ModelProviderServiceConfigProviderSecret(
                        plaintext="dummy-api-key"
                    ),
                )
            ),
        ),
    ),
)

Go SDK

Create and manage a model provider service with the Databricks SDK for Go:

Go

modelProviderService, err := w.AiGateway.CreateModelProviderService(ctx,
	catalog.CreateModelProviderServiceRequest{
		Parent:                 "schemas/main.default",
		ModelProviderServiceId: "my_provider",
		ModelProviderService: catalog.ModelProviderService{
			Comment: "Routes to a custom OpenAI-compatible provider",
			Config: &catalog.ModelProviderServiceConfig{
				ProviderType: catalog.ModelProviderServiceConfigExternalModelProviderTypeExternalModelProviderTypeCustom,
				Targets: []catalog.ModelProviderServiceConfigModelTargetConfig{{
					Model:          "gpt-4o",
					NativeApiTypes: []string{"openai/v1/chat/completions"},
				}},
				Custom: &catalog.ModelProviderServiceConfigCustomProviderConfig{
					Direct: &catalog.ModelProviderServiceConfigCustomProviderDirectConfig{
						BaseUrl: "https://api.example.com/v1",
						ApiKey: &catalog.ModelProviderServiceConfigProviderSecret{
							Plaintext: "dummy-api-key",
						},
					},
				},
			},
		},
	})

Java SDK

Create and manage a model provider service with the Databricks SDK for Java:

Java

ModelProviderServiceConfig config =
    new ModelProviderServiceConfig()
        .setProviderType(
            ModelProviderServiceConfigExternalModelProviderType
                .EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM)
        .setTargets(
            Collections.singletonList(
                new ModelProviderServiceConfigModelTargetConfig()
                    .setModel("gpt-4o")
                    .setNativeApiTypes(
                        Collections.singletonList("openai/v1/chat/completions"))))
        .setCustom(
            new ModelProviderServiceConfigCustomProviderConfig()
                .setDirect(
                    new ModelProviderServiceConfigCustomProviderDirectConfig()
                        .setBaseUrl("https://api.example.com/v1")
                        .setApiKey(
                            new ModelProviderServiceConfigProviderSecret()
                                .setPlaintext("dummy-api-key"))));

ModelProviderService modelProviderService =
    w.aiGateway()
        .createModelProviderService(
            new CreateModelProviderServiceRequest()
                .setParent("schemas/main.default")
                .setModelProviderServiceId("my_provider")
                .setModelProviderService(
                    new ModelProviderService()
                        .setComment("Routes to a custom OpenAI-compatible provider")
                        .setConfig(config)));

JS SDK

Create and manage a model provider service with the Databricks AI Gateway SDK for JavaScript:

TypeScript

import { ModelProviderServiceConfig_ExternalModelProviderType as ProviderType } from '@databricks/sdk-aigateway/v1';

const created = await client.createModelProviderService({
  parent: 'schemas/main.default',
  modelProviderServiceId: 'my_provider',
  modelProviderService: {
    comment: 'Routes to a custom OpenAI-compatible provider',
    config: {
      providerType: ProviderType.EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM,
      targets: [{ model: 'gpt-4o', nativeApiTypes: ['openai/v1/chat/completions'] }],
      provider: {
        $case: 'custom',
        custom: {
          providerMode: {
            $case: 'direct',
            direct: {
              baseUrl: 'https://api.example.com/v1',
              authMode: {
                $case: 'apiKey',
                apiKey: {
                  value: { $case: 'plaintext', plaintext: 'dummy-api-key' },
                },
              },
            },
          },
        },
      },
    },
  },
});

For the full list of providers and their authentication methods, see Model providers external to Databricks.

Authenticate Google Gemini Enterprise with a service credential

You can authenticate a Google Gemini Enterprise provider with a service credential instead of storing an API key. A service credential holds a Google Cloud service account that Unity Catalog governs, so no long-lived API key is copied into the model provider service: Databricks obtains short-lived tokens from that service account to authenticate each request.

Create the model provider service as described in Create a model provider service. Select Google Gemini Enterprise as the provider type and enter its connection details, including the GCP project ID and region. Then set Auth method to Service credential and select the credential instead of entering an API key. A service credential replaces only the secret, so the GCP project ID and region are still required.

Confirm the following requirements:

• The owner of the model provider service has ACCESS on the service credential. Because Databricks re-checks the owner's access when serving requests, the owner must keep it for as long as the provider is in use. Revoking it stops queries for everyone, even callers who hold EXECUTE on the provider. To grant the owner access to the credential:

  SQL

  GRANT ACCESS ON SERVICE CREDENTIAL <service-credential-name> TO `<model-provider-service-owner>`;

• The credential's purpose is service, not storage.

• The credential is available in the workspaces requests come from. Its workspace bindings still apply, so a request from a workspace the credential isn't bound to fails there, even though the model provider service itself is reachable from any workspace that shares the metastore.

• The service credential's Google Cloud service account is authorized to call the Gemini models you plan to query. To create a service credential, see Create service credentials.

Callers who query the provider need the same grants as for any other provider. They don't need any privilege on the service credential, which is what keeps the credential itself out of their reach.

The model provider service tracks a credential by its internal identifier, so you can rename a credential without query failure.

If you delete a credential, queries fail and there is no warning that a model provider service references it. Confirm that there are no references to this credential before you delete it.

You can't switch an existing model provider service between service credential and API key authentication. Create a new model provider service instead.

Send a custom provider API key in a header

A custom provider sends its API key as a bearer token by default. When your endpoint expects the key in a specific header instead, use API key header authentication and name the header yourself. Databricks then sends the key on each outbound request as <header name>: <header value>.

Create the model provider service as described in Create a model provider service. Select Custom as the provider type, then set Auth method to API key header and supply the Header name your endpoint expects (such as X-API-Key or Ocp-Apim-Subscription-Key) along with the Header value.

The two methods are mutually exclusive: a custom provider uses either a bearer token or a named header, not both. Header authentication takes exactly one header.

The header name must be a valid HTTP header name: letters, digits, and the characters !#$%&'*+-.^_`|~, up to 255 characters. Any other character is rejected, including spaces, colons, slashes, and line breaks.

Back a provider credential with a Unity Catalog secret

Instead of storing a provider credential inline, you can point a model provider service at a customer-owned Unity Catalog secret that holds the value. Databricks reads the secret at query time under the model provider service owner's access and never copies the value onto the model provider service, so rotating the secret takes effect with no change to the model provider service.

This works for any provider whose credential is a single inline value: OpenAI, Azure OpenAI, Anthropic, Amazon Bedrock, Microsoft Foundry, Google Gemini Enterprise, and Custom.

Create the model provider service as described in Create a model provider service. Select the provider type and enter its connection details. For the credential (such as the API key), change the authentication type from Plaintext to Secret, then select the catalog, schema, and secret that identify your Unity Catalog secret.

Confirm the following requirements:

• The owner of the model provider service has READ SECRET on the Unity Catalog secret. Because Databricks re-checks the owner's access when serving requests, the owner must keep it for as long as the provider is in use. Revoking it stops queries for everyone, even callers who hold EXECUTE on the provider. To grant the owner access to the secret:

  SQL

  GRANT READ SECRET ON SECRET <catalog>.<schema>.<secret> TO `<model-provider-service-owner>`;

• The Unity Catalog secret exists before you reference it. To create and govern Unity Catalog secrets, see Secrets in Unity Catalog.

Callers who query the provider need the same grants as for any other provider. They don't need any privilege on the Unity Catalog secret, which is what keeps the secret value out of their reach.

To rotate the credential, update the Unity Catalog secret's value, with no change to the model provider service.

If you delete the Unity Catalog secret, queries fail. The model provider service keeps the now-broken reference so you can see the dependency, and you can restore the provider by updating it to reference a secret that still exists.

Deleting a model provider service never deletes the Unity Catalog secret it references.

Grant access to a model provider service

By default, only the model provider service owner can query it. To let others query a model provider service, grant them EXECUTE on it, plus USE CATALOG and USE SCHEMA on its catalog and schema. If the model provider service logs to an inference table, grant SELECT on the table to let them read the logged requests and responses.

UI

1. Open the model provider service in Catalog Explorer, or go to AI Gateway and select the service.
2. Go to the Permissions tab.
3. Click Grant.
4. Select the users, groups, or service principals to give access to.
5. Select the EXECUTE privilege.
6. Click Grant.

REST API

Bash

databricks api patch \
  "/api/2.1/unity-catalog/permissions/model_provider_service/main.default.my_provider" \
  --json '{
    "changes": [
      { "principal": "data-team", "add": ["EXECUTE"] }
    ]
  }'

CLI

Grant EXECUTE with the Databricks CLI. To install the CLI, see Install or update the Databricks CLI.

Bash

databricks grants update model_provider_service main.default.my_provider \
  --json '{"changes": [{"principal": "data-team", "add": ["EXECUTE"]}]}'

Terraform

Grant EXECUTE with the Databricks Terraform provider and the databricks_grant resource:

Hcl

resource "databricks_grant" "example" {
  model_provider_service = "main.default.my_provider"
  principal              = "data-team"
  privileges             = ["EXECUTE"]
}

DABs (Beta)

Add a grants block to the model provider service resource in your bundle and redeploy to grant access.

YAML

variables:
  provider_api_key:
    description: Provider API key.

resources:
  model_provider_services:
    my_provider:
      parent: schemas/main.default
      model_provider_service_id: my_provider
      comment: Routes to a custom OpenAI-compatible provider
      config:
        provider_type: EXTERNAL_MODEL_PROVIDER_TYPE_CUSTOM
        targets:
          - model: gpt-4o
            native_api_types: [openai/v1/chat/completions]
        custom:
          direct:
            base_url: https://api.example.com/v1
            api_key:
              plaintext: ${var.provider_api_key}
      grants:
        - principal: data-team
          privileges: [EXECUTE]

Python SDK

Grant EXECUTE with the Databricks SDK for Python:

Python

from databricks.sdk.service import catalog as c

w.grants.update(
    securable_type="model_provider_service",
    full_name="main.default.my_provider",
    changes=[c.PermissionsChange(principal="data-team", add=[c.Privilege.EXECUTE])],
)

Go SDK

Grant EXECUTE with the Databricks SDK for Go:

Go

_, err := w.Grants.Update(ctx, catalog.UpdatePermissions{
	SecurableType: "model_provider_service",
	FullName:      "main.default.my_provider",
	Changes: []catalog.PermissionsChange{{
		Principal: "data-team",
		Add:       []catalog.Privilege{catalog.PrivilegeExecute},
	}},
})

Java SDK

Grant EXECUTE with the Databricks SDK for Java:

Java

w.grants().update(
    new UpdatePermissions()
        .setSecurableType("model_provider_service")
        .setFullName("main.default.my_provider")
        .setChanges(Arrays.asList(
            new PermissionsChange().setPrincipal("data-team").setAdd(Arrays.asList(Privilege.EXECUTE)))));

For more about granting and discovering access, see Discover and govern access to external model providers (model provider services).

Configure features

Because a model provider service routes through Unity Gateway, apply the same governance and observability features you use for other Unity Gateway traffic:

• Inference logging. Log requests and responses to a Unity Catalog table. See Log requests and responses to inference tables.
• Rate limits. Cap queries per minute to manage capacity and cost. See Apply rate limits to model and MCP services.
• Service policies. Govern the content of each interaction, such as blocking unsafe content or redacting sensitive data, by attaching a service policy. See Service policies for AI securables and Create and attach a service policy.

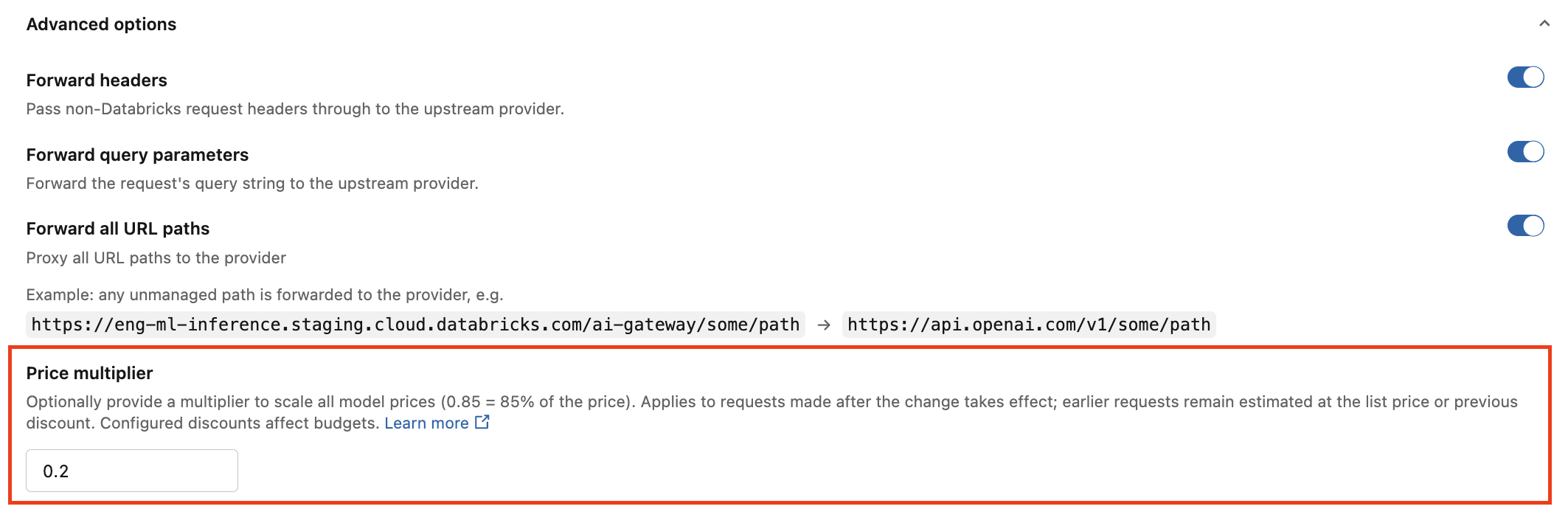

Configure a price multiplier

By default, Databricks estimates external model spend using the provider's published list prices. If your provider pricing differs, configure a price multiplier to reflect discounts or margins. For example, 0.8 uses 80% of the list price, while 1.2 uses 120%.

1. Create a model provider service, or open an existing model provider service in Catalog Explorer or AI Gateway and click Edit.
2. Expand Advanced options.
3. Enter a Price multiplier.
4. Click Create or Save.

The multiplier applies to all models available through the model provider service. Computed spend in system.ai_gateway.external_model_spend reflects the configured multiplier. Changes apply to requests made after the configuration takes effect; earlier requests remain estimated using the list price or the previously configured multiplier.

A configured multiplier displays a Custom Pricing tag. Adjusted prices have a dotted underline in pricing tables. Hover over an adjusted price to compare the adjusted price with the provider's list price.

Update a model provider service

You must be an owner or have MANAGE. The provider type is immutable.

UI

Edit the model provider service's configuration from the Unity Gateway UI or Catalog Explorer. Changes apply in place.

REST API

Bash

databricks api patch \
  "/api/2.1/unity-catalog/model-provider-services/main.default.my_provider?update_mask=comment" \
  --json '{"comment": "Updated: routes to a custom provider"}'

CLI

Bash

databricks ai-gateway update-model-provider-service model-provider-services/main.default.my_provider comment \
  --json '{"comment": "Updated: routes to a custom provider"}'

Terraform

Edit comment (or any other mutable field) on the databricks_ai_gateway_model_provider_service resource and re-apply. Changes apply in place.

DABs (Beta)

Edit comment (or any other mutable field) in the bundle resource and run databricks bundle deploy. Changes apply in place.

Python SDK

Python

from databricks.sdk.service import catalog as c
from google.protobuf.field_mask_pb2 import FieldMask

updated = w.ai_gateway.update_model_provider_service(
    name="model-provider-services/main.default.my_provider",
    update_mask=FieldMask(paths=["comment"]),
    model_provider_service=c.ModelProviderService(
        comment="Updated: routes to a custom provider"
    ),
)

Go SDK

Go

updated, err := w.AiGateway.UpdateModelProviderService(ctx,
	catalog.UpdateModelProviderServiceRequest{
		Name:       "model-provider-services/main.default.my_provider",
		UpdateMask: *fieldmask.New([]string{"comment"}),
		ModelProviderService: catalog.ModelProviderService{
			Comment: "Updated: routes to a custom provider",
		},
	})

Java SDK

Java

ModelProviderService updated =
    w.aiGateway()
        .updateModelProviderService(
            new UpdateModelProviderServiceRequest()
                .setName("model-provider-services/main.default.my_provider")
                .setUpdateMask(FieldMask.newBuilder().addPaths("comment").build())
                .setModelProviderService(
                    new ModelProviderService()
                        .setComment("Updated: routes to a custom provider")));

JS SDK

TypeScript

import { modelProviderServiceFieldMask } from '@databricks/sdk-aigateway/v1';

const updated = await client.updateModelProviderService({
  modelProviderService: {
    name: 'model-provider-services/main.default.my_provider',
    comment: 'Updated: routes to a custom provider',
  },
  updateMask: modelProviderServiceFieldMask('comment'),
});

Delete a model provider service

You must be an owner or have MANAGE.

UI

Open the model provider service in the Unity Gateway UI or Catalog Explorer and select Delete from the kebab menu.

REST API

Bash

databricks api delete "/api/2.1/unity-catalog/model-provider-services/main.default.my_provider"

CLI

Bash

databricks ai-gateway delete-model-provider-service model-provider-services/main.default.my_provider

Terraform

Run terraform destroy, or remove the resource block and re-apply.

DABs (Beta)

Remove the resource from the bundle and run databricks bundle deploy to delete it. databricks bundle destroy also works, but it removes every resource the bundle manages, not just this one.

Python SDK

Python

w.ai_gateway.delete_model_provider_service(
    name="model-provider-services/main.default.my_provider"
)

Go SDK

Go

err := w.AiGateway.DeleteModelProviderService(ctx,
	catalog.DeleteModelProviderServiceRequest{
		Name: "model-provider-services/main.default.my_provider",
	})

Java SDK

Java

w.aiGateway()
    .deleteModelProviderService(
        new DeleteModelProviderServiceRequest()
            .setName("model-provider-services/main.default.my_provider"));

JS SDK

TypeScript

await client.deleteModelProviderService({
  name: 'model-provider-services/main.default.my_provider',
});

Next steps

• Query external model providers (model provider services)
• Discover and govern access to external model providers (model provider services)
• Model providers external to Databricks
